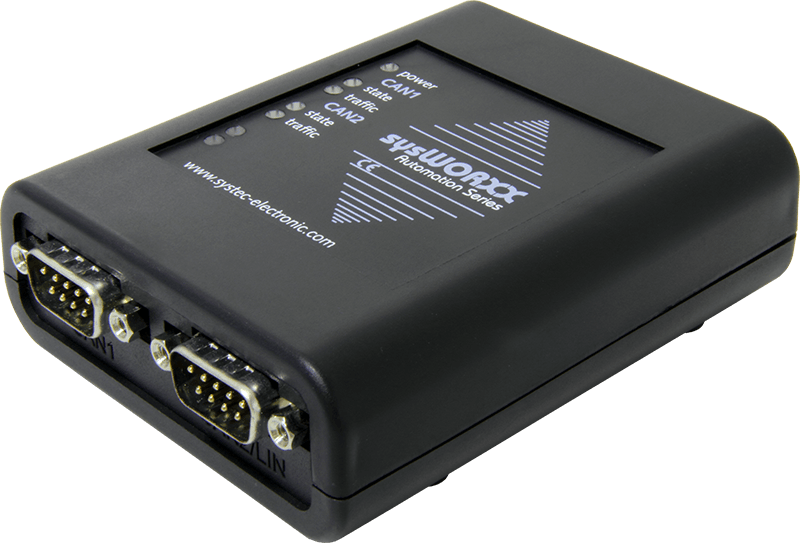

参数
| 可用CAN通道: |
2路 |
| PC 连接: |
USB V2.0全速 |
| CAN 接口: |
2路CAN接口，高速CAN符合ISO 11898-2，光电隔离
可选低速或单线CAN，符合ISO 11898-3 |
| CAN 收发器: |
高速CAN: 82C251
低速CAN: TJA1054
单线CAN: AU5790 |
| CAN 规范: |
ISO 11898-1/2, 标准帧，扩展帧 |
| CAN 连接器: |
SUB-D9 |
| CAN 比特率: |
10kbps 至 1Mbps |
| CAN 总线功能: |
传输远程帧
只听模式，100µs硬件时间戳用于接收报文，Tx报文收条带时间戳
自动传输循环的报文，通过该模块、硬件验收过滤器、用于接收的回调事件、状态变化和连接/断开 |
| 软件支持 Windows 操作系统: |
USB-CANmodul Control - 该配置工具可管理多个USB-CANmodul型USB CAN模块
PCAN View - 一款简单的CAN监视器，可接收和传输CAN报文 |
| 程序员支持的Windows操作系统: |
全面的编程器API包括演示源，适用于Microsoft Visual C++, LabView, Visual Basic .NET
CANopen API for .NET – 基于我们的CANopen协议栈并可轻松实施CANopen应用程序 |
| 程序员支持的Linux操作系统: |
SocketCAN based API |
| 设备驱动: |
Windows® 10, 8.1, 8, 7 (32/64 bit), Linux |
| LED 指示灯: |
LED指示灯用于电源、CAN状态、CAN通讯 |
| 电源: |
USB 供电 |
| 电流消耗: |
常规 150mA |
| 操作温度: |
-40℃ 至 +85℃ |
| 湿度: |
10 to 95% non-condensing (VDE 0110) |
| 外壳: |
台式 |
| 重量: |
approx. 110g |
| 尺寸: |
100 x 78 x 30mm |
|
|
文档
| 名称 |
类型 |
大小 |
动作 |
| U |
USB-CANmodul Series - Product Flyer
|
pdf |
2 MB |
Download |
USB-CANmodul - User Manual
|
pdf |
3 MB |
Download |
| C |
CANopen API for .NET - Software Manual
|
pdf |
273 KB |
Download |
下载
| 名称 |
类型 |
大小 |
动作 |
| U |
USB-CANmodul Utility Disk
P/N SO-387 - V6.04 R1 - Driver for Windows® 10, 8.1, 8, 7 (32/64 bit), LabView Please Note! This driver package does not support the obsolete versions GW-001, GW-002 and AT91 (3rd generation) based hardware revisions of USB-CANmodul2/8/16 (P/N 3204003 Rev.02, 3204004, 3404001). Please check our download area for getting driver support for these obsolete versions! |
ZIP |
11 MB |
Download |
USB-CANmodul Utility Disk - driver support for modules of 3rd (AT91) and 4th (STM32) generation
P/N SO-387 - V5.16 - Driver for Windows® 8.1, 8, 7 (32/64 bit), LabView Please Note! This driver package does not support the obsolete versions GW-001 and GW-002. Please check our download area for getting driver support for these obsolete versions! |
ZIP |
11 MB |
Download |
| C |
CANopen API for .NET
P/N SO-1088 - V5.60 - Release March 2015 |
zip |
53 MB |
Download |
| L |
Linux SocketCAN Driver for USB-CANmodul series
Release Version V0.9.8 |
bz2 |
323 KB |
Download |
订货说明
| 货号 |
说明 |
| 3204003-01 |
USB-CANmodul2
table-case, 2x high-speed CAN transceiver 82C251, optical isolated |
| 3204019-01 |
USB-CANmodul2 - 1x TJA1054, 1x 82C251 optical iso. *
table-case, 1x low-speed CAN transceiver TJA1054, 1x high-speed CAN transceiver 82C251, optical isolated |
| 3204008 |
USB-CANmodul2 - 1x AU5790, 1x 82C251 *
table-case, 1x single-wire CAN transceiver AU5790, 1x high-speed CAN transceiver 82C251, optical isolated |
| 3204007-01 |
USB-CANmodul2 with 8-bit expansion port *
table-case, 8-bit expansion port, 2x high-speed CAN transceiver 82C251, optical isolated |
* 按需定制
|
|
