温度探头 -
采用Pt1000传感器和扣带公接头用于T-PRINT G0221和温度计D0211, D0221, D0241 |
Tolerance of probes ± ( 0.15 + 0.002 * t ) °C - class A in accordance with IEC751
type Pt1000TGL40/C - low cost multi-purpose watertight (IP67) probe -30 to +80°C, stainless steel 17241 with PVC cable of specified length. Diameter 5.7mm, length 40mm. Cable lengths 1,2,5 or 10 meters available.
Time response t63<10s, t95<30s, measured in fluid.
Time response t63<60s, t95<150s, measured in airflow 1m/s.
|
type Pt1000TG8/C - multi-purpose watertight (IP67) probe -80 to +200°C, stainless steel 17241 with silicone cable of specified length. Diameter 5.7mm, length 40mm. Cable lengths 1,2,5 or 10 meters available.
Time response t63<10s, t95<30s, measured in fluid.
Time response t63<60s, t95<150s, measured in airflow 1m/s.
|
type Pt1000TR050/C - multi-purpose probe e.g. for dryers, soldering machines etc. Measuring range 0 to 350°C, short term up to 400°C. Cable with metal shielding is resistant up to 400°C. Cable lengths 1,2,5 or 10 meters available. Probe is not resistant against moisture.
|
type 200-80/C Fast accurate air probe -30 to +80°C for direct insertion to the connector of Commeter D0211,D0221,D0241.
Tolerance: ± ( 0.1 + 0.0017 * t ) °C
Response time: t63 < 10s, t95 < 30s (air flow 1m/s).
Probe is not resistant against moisture.
|
type Pt1000TG7/C - brass surface probe with cable of specified length, range from -30 to +200°C. Diameter 18mm, width 6.5mm. Mounting by a M4 srew or fixing by a self adhesive tape. Cable lengths 1,2,5 or 10 meters available. Probe is not resistant against moisture.
|
type 2021-150/C - multi purpose probe -30 to +150°C with 1 meter cable. Probe is not resistant against moisture.
|

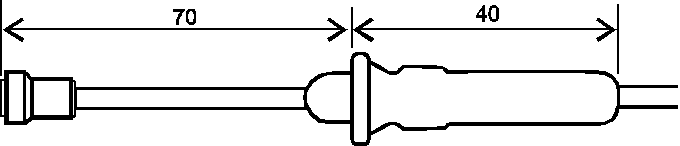

type 2301-250/C - hand held pointed tip probe -30 to +220°C with 1 meter cable. Probe is not resistant against moisture. Time response t63<10s, t95<30s, measured in fluid.
|
type 2061-200/C - hand-held pointed tip probe -30 to +200°C, stainless steel 17241 for food industry with teflon handle and silicon cable 1 meter, IP67. Time response t63<7s, t95<15s, measured in fluid.
type 2061-250/C - hand-held pointed tip probe -30 to +250°C, stainless steel 17241 for food industry with teflon handle and teflon cable 1 meter, IP67. Time response t63<7s, t95<15s, measured in fluid.
|
type 2031-150/C - direct surface probe -30 to +150°C with 1 meter cable. Probe is not resistant against moisture.
- only in tolerance class B (IEC751) |

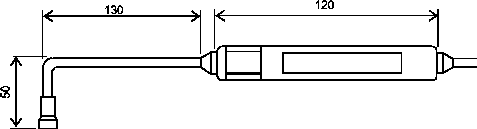

type 2032-150/C - right angled surface probe -30 to +150°C with 1 meter cable. Probe is not resistant against moisture.
- only in tolerance class B (IEC751) |
type PTS350-2/C - surface probe for tubing and flat surface, range from -30 to +130°C, 2 meters cable, IP65
|
|
|
